NAVYPEDIA


P61 2009

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
	P61		Fincantieri, Muggiano, Italy		24.6.2005	4.11.2005	in service (2020)

Technical data

Displacement standard, t	390
Displacement full, t	450
Length, m	47.2 pp 53.4 oa
Breadth, m	8.10
Draught, m	2.20
No of shafts	2
Machinery	2 Isotta-Fraschini V1716T2MSD diesels
Power, h. p.	6335
Max speed, kts	23
Fuel, t	diesel oil
Endurance, nm(kts)	2100(16)
Armament	1 x 1 - 25/80 KBA, 2 x 1 - 7.6/90, helicopter deck
Electronic equipment	2x GEM radars
Complement	25

Standard scale images

Graphics

Project history

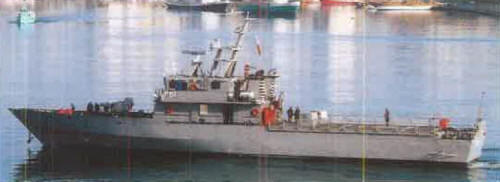

Modified Ubaldo Diciotti patrol ship of Italian Guardia Costiera, ordered in 2004. Carries a 7m fast launch on ramp aft.

Modernizations

2017: + 2x Janus naval e/o systems

Naval service

No significant events.
