TUNKU ABDUL RAHMAN submarines (2009)

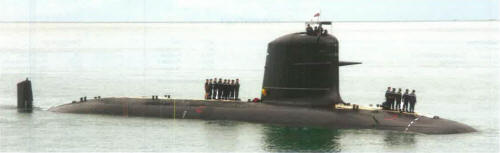

Tun Abdul Razak 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Tunku Abdul Rahman | S630 | DCNS, Cherbourg, France | 25.4.2004 | 23.10.2007 | 27.1.2009 | in service (2019) | |
| Tun Abdul Razak | S631 | Navantia, Cartagena,Spain | 25.4.2005 | 8.10.2008 | 5.11.2009 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 1550 / 1740 |
| Length, m | 67.5 |
| Breadth, m | 6.20 |
| Draught, m | 5.40 |
| No of shafts | 1 |
| Machinery | 2 MAN-Pielstick 12PA4 V200SMDS diesel-generators, 1 Jeumont electric motor |
| Power, h. p. | 3800 |
| Max speed, kts | 12 / 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6500(8) / 550(4) |
| Armament | 6 - 533 TT (bow, 18, inc. SM39 Exocet SSM (18 Black Shark, inc. 4 SM39 Block II SSM instead of torpedoes)) |
| Electronic equipment | nav. radar, TSM 2233 Mk 2 sonar suite, DR3000 ECM suite, SUBTICS KD TAR CCS |
| Complement | 31 + 6 commandos |
| Diving depth operational, m | 350 |
Standard scale images
Tunku Abdul Rahman 2010
Graphics
Tun Abdul Razak 2011
Project history
Ordered in 2002 under French 'Scorpéne' design. No AIP system is fitted but this option can be added later. A machinery is rafted for sound isolation.
Modernizations
None.
Naval service
No significant events.
