MAHAMIRU minehunters (1985)

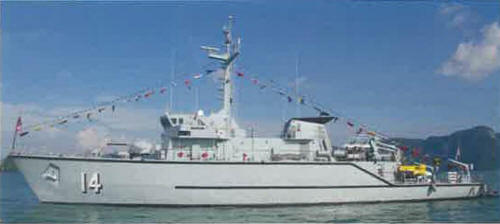

Kinabalu 2011
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
Mahamiru |
11 |
Intermarine, Sarzana, Italy |
30.3.1981 |
24.2.1983 |
11.12.1985 |
in service (2019) |
|
Jerai |
12 |
Intermarine, Sarzana, Italy |
19.9.1981 |
8.12.1983 |
11.12.1985 |
in service (2019) |
|
Ledang |
13 |
Intermarine, Sarzana, Italy |
7.4.1982 |
17.7.1983 |
11.12.1985 |
in service (2019) |
|
Kinabalu |
14 |
Intermarine, Sarzana, Italy |
28.10.1982 |
19.3.1983 |
11.12.1985 |
in service (2019) |
Technical data
| Displacement standard, t | 570 |
|---|---|
| Displacement full, t | 610 |
| Length, m | 46.5 pp 51.0 oa |
| Breadth, m | 9.56 |
| Draught, m | 2.75 |
| No of shafts | 2 / retractable auxiliary propellers |
| Machinery | 2 MTU 16V396 TC82 diesels / 2 electric motors |
| Power, h. p. | 2600 / 240 |
| Max speed, kts | 16 / 7 |
| Fuel, t | diesel oil 46 |
| Endurance, nm(kts) | 2000(12) |
| Armament | 1 x 1 - 40/70 Bofors 315, 2x PAP-104 USV, Oropesa Mk 4 mechanical minesweeping gear, decompression chamber |
| Electronic equipment | Decca 1226 radar, TSM 2022 Mk 2 sonar |
| Complement | 42 |
Standard scale images
Mahamiru 1990
Graphics
Kinabalu 2011
Project history
Modified Lerici type GRP minehunters, ordered in 1981. Differ from Italian sisters in propulsion and electronics.
Modernizations
2007-08, Mahamiru, Ledang; 2015-16, Jerai, Kinabalu: - Decca 1226 radar, TSM 2022 Mk 2 sonar; + type 1007 radar, TSM 2022 Mk 3 sonar
Naval service
No significant events.
