SRI INDERAPURA tank landing ship (1971/1994)

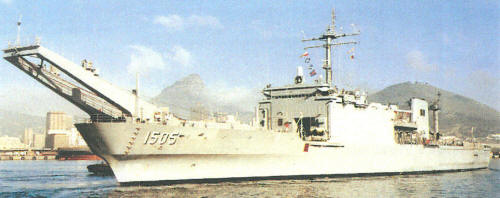

Sri Inderapura 1995
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| Sri Inderapura (ex-Spartanburg County) | 1505 | 371 | National Steel, San Diego, USA | 7.2.1970 | 7.11.1970 | 1.9.1971 // 16.12.1994 | fire 8.10.2009, retired |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 8342 |
| Length, m | 159.2 oa over hull, 171.3 oa over derrick arms |
| Breadth, m | 21.2 |
| Draught, m | 5.30 aft |
| No of shafts | 2 |
| Machinery | 6 Alco 16-251 diesels |
| Power, h. p. | 16500 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil 1750 |
| Endurance, nm(kts) | 14250(14) |
| Armament | 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, helicopter deck |
| Military load | 29 tanks or 2000 t of cargo, 385 troops, 3 LCVP, 1 LCP |
| Electronic equipment | SPS-64(v)9, SPS-10F, Mk 90 radars, 2x Mk 36 SRBOC decoy RL |
| Complement | 218 |
Standard scale images
Sri Inderapura 1995
Graphics
Sri Inderapura 1995
Project history
Former USN Newport class tank landing ship.
Modernizations
None.
Naval service
Sri Inderapura suffered a serious fire 8.10.2009 and was retired from service.
