SRI GAYA fast troop vessels (2001)

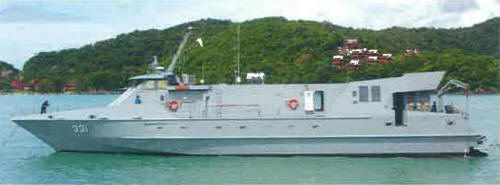

Sri Gaya 2005

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
Sri Gaya 331   PSC-NDSB, Lumut     29.5.2001 in service (2019)
Sri Tiga 332   PSC-NDSB, Lumut     29.5.2001 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

116

Length, m

30.3 pp 37.5 oa

Breadth, m

7.02

Draught, m

2.50

No of shafts

2 waterjets

Machinery

2 MAN 2842LE408 diesels

Power, h. p.

2000

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)

540

Armament

2 x 1 - 7.6/90

Military load

200 passengers, 4 t of cargo

Electronic equipment

Furuno radar

Complement

8



Standard scale images


<i>Sri Gaya</i> 2005
Sri Gaya 2005


Graphics


<i>Sri Gaya </i>2005
Sri Gaya 2005


Project history

Fast troop vessels of aluminium construction.

Modernizations

None.

Naval service

No significant events.
