LCM1 landing craft (1970)

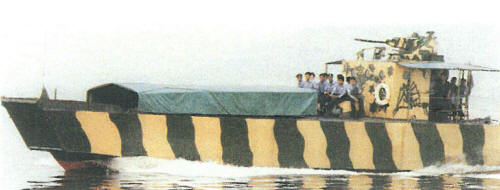

LCM5 1995
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LCM1 - 5 |
De Havilland Marine, Sydney, Australia: LCM1 - 5 |
1970: LCM1 - 5 |
none |
none |
late 1990s: LCM1 - 5 |
Technical data
| Displacement standard, t | 24 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 17.1 |
| Breadth, m | 4.37 |
| Draught, m | 1.17 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 330 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 130(10) |
| Armament | none |
| Military load | 30 t of cargo or 1 light tank |
| Electronic equipment | none |
| Complement |
Graphics
LCM5 1995
Project history
Standard LCM(6) type landing craft, mechanized.
Modernizations
1990s, some: + light gun in tank turret
Naval service
In 1993 all were transferred to the army.
