Watercat M14 patrol boats (2006-2007)
2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
10 units |
Marine Alutech, Teijo, Finland |
2006-2007: 10 units |
none |
none |
in service (2019): 10 units |
Technical data
| Displacement standard, t | 13 |
|---|---|
| Displacement full, t | |
| Length, m | 13.9 |
| Breadth, m | 3.70 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar 3512 diesels |
| Power, h. p. | 815 |
| Max speed, kts | 37 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 3 + 20 passengers |

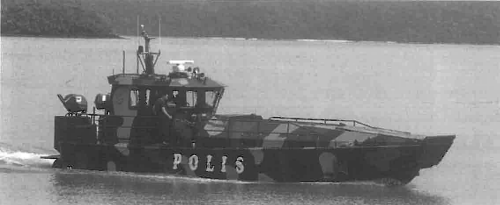

Graphics
2011
Project history
Maritime Police. Watercat M14 design, export version of Finnish Jurmo class (Watercat M12). Aluminium construction.
Modernizations
None.
Naval service
No significant events.
