SANGITARI coastal patrol craft (1982-1983)

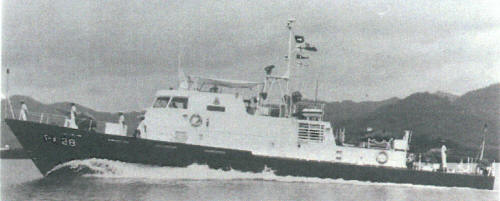

Sangitari 1991
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Sangitari, 2012- Redang | PX28, 2012- 2953 | Penang SY, Pulau Jerejah | 1982 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Sabahan, 2012- Kapas | PX29, 2012- 2954 | Penang SY, Pulau Jerejah | 1982-83 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Dungun, 2012- Libaran | PX30, 2012- 2955 | Penang SY, Pulau Jerejah | 1982-83 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Tioman, 2012- Mabul | PX31, 2012- 2956 | Penang SY, Pulau Jerejah | 1982-83 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Tumpar, 2012- Tenggol | PX32, 2012- 2957 | Penang SY, Pulau Jerejah | 1982-83 | Maritime Enforcement Agency 2012, in service (2019) | |||
| Juang, 2012- Sebatik | PX33, 2012- 2958 | Penang SY, Pulau Jerejah | 1982-83 | Maritime Enforcement Agency 2012, in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 114 |
| Length, m | 26.5 pp 29.0 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Paxman-Valenta 16RP200M diesels |
| Power, h. p. | 8000 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(24) |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
| Complement | 18 |
Graphics
Sangitari 1991
Project history
Brooke Marine 29m design. Ordered in 1980.
Modernizations
None.
Naval service
No significant events.
