PENYELAMAT 5 patrol boats (2011-2012)
Penyelamat 5 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
2005 Penyelamat 5 2007-2010 Penyelamat 7-10 |
Perlis Marine: 2005, 2007-2010 |
2011-2012: 2005, 2007-2010 |
none |
none |
in service (2019): 2005, 2007-2010 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 16.5 pp 20.0 oa |
| Breadth, m | 4.50 |
| Draught, m | 0.95 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 8V2000 M92 diesels |
| Power, h. p. | 1090 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 350(30) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 5 + 6 passengers |
Graphics

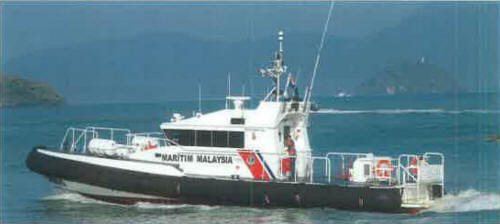

Penyelamat 5 2013
Project history
Maritime Enforcement Agency.
Modernizations
None.
Naval service
No significant events.
