PENGGALANG 20 patrol boats (2012-2013)
Penggalang 26 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
1720-1727 Penggalang 20-27 |
Icarus Marine, Cape Town, South Africa: 1720-1727 |
2012-2013: 1720-1727 |
none |
none |
in service (2019): 1720-1727 |
Technical data
| Displacement standard, t | 16 |
|---|---|
| Displacement full, t | 21 |
| Length, m | 17.3 |
| Breadth, m | 4.70 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 10V2000 M93 diesels |
| Power, h. p. | 3040 |
| Max speed, kts | 60 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(45) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 3 + 12 passengers |
Graphics

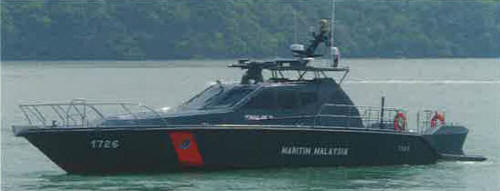

Penggalang 26 2013
Project history
Fast interceptors, South African design. Maritime Enforcement Agency.
Modernizations
None.
Naval service
No significant events.
