PENGGALANG 10 patrol boats (2011-2013)
Penggalang 11 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
1810-1819 Penggalang 10-19 |
Yonca-Onuk, Tuzla, Turkey: 1810-1813 BYO Marine, Boustead: 1814-1819 |
2011: 1810-1813 2012-2013: 1814-1819 |
none |
none |
in service (2019): 1810-1819 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 25 |
| Length, m | 17.8 |
| Breadth, m | 4.19 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 10V2000 M93 diesels |
| Power, h. p. | 3040 |
| Max speed, kts | 60 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 350(35) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

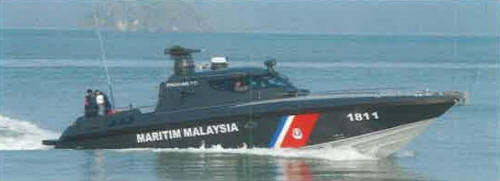

Penggalang 11 2013
Project history
Fast interceptors, Turkish MRTP16 design. Maritime Enforcement Agency.
Modernizations
None.
Naval service
No significant events.
