P202 patrol boats (1990)
Rhu 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 2007- Rhu | P202, 2007- 2601 | Malaysia | 1990 | Maritime Enforcement Agency 2007, in service (2019) | |||
| 2007- Stapa | P204, 2007- 2602 | Malaysia | 1990 | Maritime Enforcement Agency 2007, in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 100 |
| Length, m | 26.9 |
| Breadth, m | 5.80 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 Deutz 16M816CR diesels |
| Power, h. p. | |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 15 |
Graphics

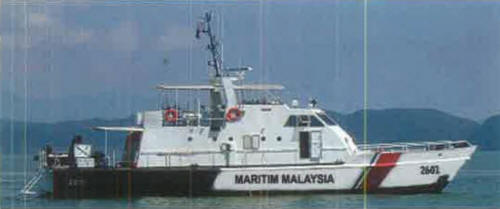

Rhu 2010
Project history
Fishery department.
Modernizations
None.
Naval service
In 2007 both were transferred to Maritime Enforcement Agency.
