MARLIN patrol craft (2006)

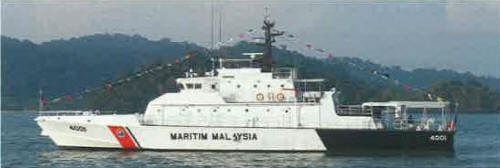

Marlin 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Marlin | 4001 | Naha, Japan | 30.1.2006 | 1.6.2006 | in service (2019) |
Technical data
| Displacement standard, t | 268 |
|---|---|
| Displacement full, t | |
| Length, m | 38.4 pp 40.0 oa |
| Breadth, m | 7.20 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 6RY17P-GV diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | 2x Furuno radars |
| Complement | 27 |
Graphics
Marlin 2013
Project history
Training ship built and donated by the Nippon Foundation.
Modernizations
None.
Naval service
No significant events.
