LANG HITAM large patrol craft (1980-1983)

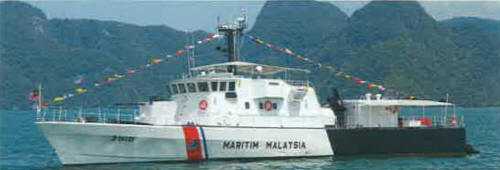

Tegas 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lang Hitam, 2006- Tegas | PZ1, 2006- 3910 | Hong Leong-Lürssen, Butterworth | 1980 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Lang Malam, 2006- Gagah | PZ2, 2006- 3901 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Lang Lebah, 2006- Tabah | PZ3, 2006- 3902 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Lang Kuik, 2006- Cekal | PZ4, 2006- 3903 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Balong, 2006- Mulia | PZ5, 2006- 3911 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Berlian, 2006- Bijak | PZ6, 2006- 3912 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Kurita, 2006- Berani | PZ7, 2006- 3904 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Serangan Batu, 2006- Setia | PZ8, 2006- 3905 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Harinan Bintang, 2006- Amanah | PZ9, 2006- 3906 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Harinan Kimbang, 2006- Jujur | PZ10, 2006- 3907 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Harinan Belang, 2006- Adil | PZ11, 2006- 3913 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Harinan Akar, 2006- Ikhlas | PZ12, 2006- 3908 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Perangan, 2006- Pintar | PZ13, 2006- 3914 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Mersuji, 2006- Budiman | PZ14, 2006- 3909 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) | |||
| Alu-Alu, 2006- Bistari | PZ15, 2006- 3915 | Hong Leong-Lürssen, Butterworth | 1980-83 | Maritime Enforcement Agency 2005/06, in service (2019) |
Technical data
| Displacement standard, t | 188 |
|---|---|
| Displacement full, t | 220 |
| Length, m | 36.0 pp 38.5 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 20V538 TB92 diesels |
| Power, h. p. | 9000 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1100(16) |
| Armament | 1 x 1 - 40/70 Bofors 315, 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90 |
| Electronic equipment | Kelvin-Hughes 14/9 radar |
| Complement | 38 |
Graphics
Tegas 2013
Project history
Lürssen FPB38 design, ordered in 1979.
Modernizations
mid-2010s, all: - 1 x 1 - 20/70
Naval service
No significant events.
