KUALA TRENGGANU coastal patrol craft (1973-1974)
Sri Menanti 1972
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PX21 Kuala Trengganu PX22 Johore Bahru PX23 Sri Menanti PX24 Kuching |
Vosper, Singapore: PX21-24 |
1973-1974: PX21-24 |
none |
none |
2012: PX21-24 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 92 |
| Length, m | 27.3 |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU MB820Db diesels |
| Power, h. p. | 2460 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(15) |
| Armament | 2 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 19 |
Graphics

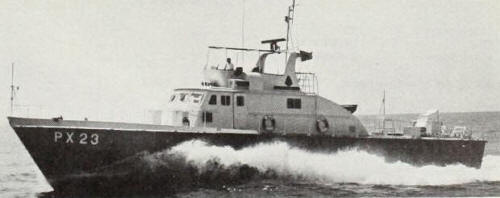

Sri Menanti 1972
Project history
Class was operated by Royal Malaysian Marine Police.
Modernizations
None.
Naval service
No significant events.
