KA43 patrol boats (1993)
Sugut 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
KA43, 2011- 2203 Renggis KA45 Johan, 2011- 2204 Sugut KA50, 2011- 2205 Balung |
Limbungan Timor, Terengganu: KA43, 45, 50 |
1993: KA43, 45, 50 |
none |
none |
in service (2019): KA43, 45, 50 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 60 |
| Length, m | 28.8 |
| Breadth, m | 5.90 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 Seutz SBA16M diesels |
| Power, h. p. | 3140 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

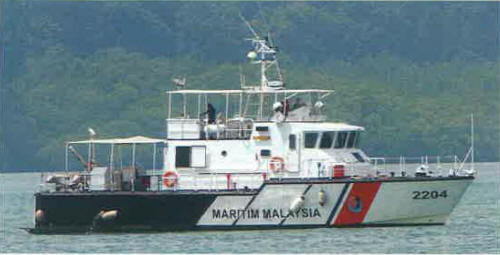

Sugut 2013
Project history
Maritime Police.
Modernizations
None.
Naval service
All were transferred to Maritime Enforcement Agency in 2011.
