BINTANG UTARA patrol craft (1999)
Malawali 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Bintang Utara, 4.2006- 2551 Malawali Bintang Timor, 4.2006- 2552 Serasan Bintang Manjung, 4.2006- 2553 Manjung Bintang Baru, 4.2006- 2554 Tebrau |
Malaysia: Bintang Utara, Bintang Timor, Bintang Manjung, Bintang Baru |
1999: Bintang Utara, Bintang Timor, Bintang Manjung, Bintang Baru |
none |
none |
in service (2019): 2551-2554 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 63 |
| Length, m | 25.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 Deutz 16M816CR diesels |
| Power, h. p. | |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 14 |
Graphics

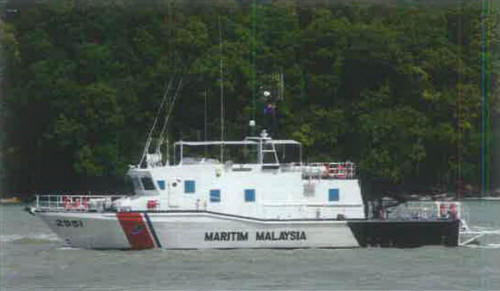

Malawali 2011
Project history
Marine Department.
Modernizations
None.
Naval service
In 2006 all were transferred to Maritime Enforcement Agency.
