Danga 2013

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Bahtera Juang, 6.2005- Kimanis	K33, 6.2005- 3225		Malaysian SE, Pasir Gudang			1982	Maritime Enforcement Agency 6.2005, in service (2019)
Bahtera Kinabalu, 6.2005- Ramunia	K35, 6.2005- 3221		Malaysian SE, Pasir Gudang			1982	Maritime Enforcement Agency 6.2005, in service (2019)
Bahtera Perak, 2012- Burau	K36, 2012- 3226		Malaysian SE, Pasir Gudang			1983-84	Maritime Enforcement Agency 2012, in service (2019)
Bahtera Bayu, 6.2005- Marudu	K37, 6.2005- 3222		Malaysian SE, Pasir Gudang			1983-84	Maritime Enforcement Agency 6.2005, in service (2019)
Bahtera Hijau, 6.2005- Danga	K38, 6.2005- 3223		Malaysian SE, Pasir Gudang			1983-84	Maritime Enforcement Agency 6.2005, in service (2019)
2012- Nipah	K39, 2012- 3227		Malaysian SE, Pasir Gudang			1983-84	Maritime Enforcement Agency 2012, in service (2019)
Bahtera Jerai, 6.2005- Siangin	K40, 6.2005- 3224		Malaysian SE, Pasir Gudang			1983-84	Maritime Enforcement Agency 6.2005, in service (2019)

Technical data

Displacement standard, t	100
Displacement full, t	143
Length, m	29.5 pp 32.4 oa
Breadth, m	7.20
Draught, m	1.80
No of shafts	2
Machinery	2 Paxman-Valenta 16RP200 diesels
Power, h. p.	4000
Max speed, kts	27
Fuel, t	diesel oil
Endurance, nm(kts)	2000(8)
Armament	1 x 1 - 40/60 Mk 3, 2 x 1 - 7.6/90
Electronic equipment	Kelvin-Hughes radar
Complement	24

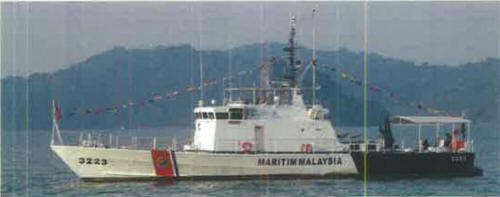

Graphics

Project history

Customs. Vosper 32m design.

Modernizations

None.

Naval service

In 2005 and 2012 all were transferred to Maritime Enforcement Agency.
