FIGHTING SHIPS OF THE WORLD
MALAYSIA
COASTAL FORCES
PERDANA fast attack craft (missile) (1972-1973)

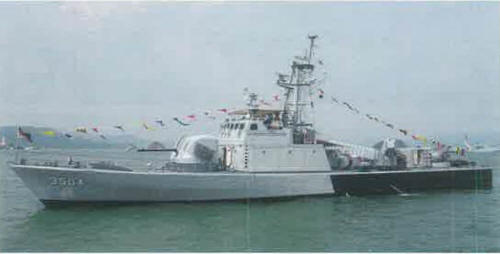

Ganyang 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Perdana | 3501 | CMN, Cherbourg, France | 31.5.1972 | 21.12.1972 | in service (2019) | ||
| Serang | 3502 | CMN, Cherbourg, France | 22.12.1971 | 31.1.1973 | in service (2019) | ||
| Ganas | 3503 | CMN, Cherbourg, France | 26.10.1972 | 28.2.1973 | in service (2019) | ||
| Ganyang | 3504 | CMN, Cherbourg, France | 16.3.1972 | 20.3.1973 | in service (2019) |
Technical data
| Displacement standard, t | 234 |
|---|---|
| Displacement full, t | 265 |
| Length, m | 47.0 |
| Breadth, m | 7.10 |
| Draught, m | 2.50 full load |
| No of shafts | 4 |
| Machinery | 4 MTU MB870 diesels |
| Power, h. p. | 14000 |
| Max speed, kts | 36.5 |
| Fuel, t | diesel oil 39 |
| Endurance, nm(kts) | 1800(15) |
| Armament | 2 x 1 MM38 Exocet SSM (2 MM38), 1 x 1 - 57/70 SAK-57 Mk 1, 1 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | Decca 626, Triton THD-1040, Pollux radars, DR-2000 ECM suite |
| Complement | 30 |
Standard scale images
Perdana 1990
Graphics
Ganyang 2013
Project history
Four 'Combattante II A4L' type missile strike craft were ordered in 1970. Equipped with Swedish guns and French fire control system.
Modernizations
mid-2010s, all: - Decca 626 radar, DR-2000 ECM suite; + type 1007 radar, DR-3000 ECM suite
Naval service
No significant events.
