AINA VAO VAO small landing ships (1965/1985)

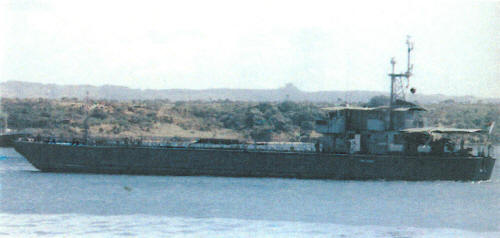

Aina Vao Vao 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Aina Vao Vao (ex-EDIC9082) | C. N. Franco-Belges, Villeneuve la Garenne, France | 6.1965 //27.9.1985 | discarded 2009 |
Technical data
| Displacement standard, t | 635 |
|---|---|
| Displacement full, t | 736 |
| Length, m | 59.0 |
| Breadth, m | 12.0 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 MGO diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(8) |
| Armament | 1 x 1 - 12.7/90 |
| Military load | 5 LVTs or 11 trucks |
| Electronic equipment | radar |
| Complement | 17 |
Standard scale images
Aina Vao Vao 1990
Graphics
Aina Vao Vao 1999
Project history
Former French EDIC type small landing ship (LCU).
Modernizations
None.
Naval service
No significant events..
