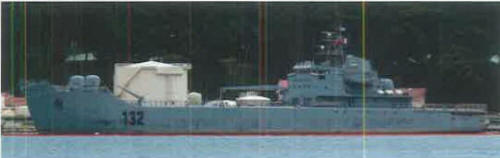

Ibn Ouf 2013

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
إبن عوف [Ibn Ouf]	L130, 1983- 132		CNIM, La Seyne, France	1.4.1976	22.10.1976	11.3.1977	in service (2019)
أبن حارثة [Ibn Haritha]	L131, 1983- 134		CNIM, La Seyne, France	18.4.1977	18.10.1977	10.3.1978	in service (2019)

Technical data

Displacement standard, t	2200
Displacement full, t	2800
Length, m	100.0
Breadth, m	15.7
Draught, m	2.60
No of shafts	2
Machinery	2 SEMT-Pielstick 16PA4 V185 diesels
Power, h. p.	5340
Max speed, kts	15
Fuel, t	diesel oil
Endurance, nm(kts)	4000(14)
Armament	3 x 2 - 40/70 Breda-Bofors Compact Twin 40, 1 x 1 - 81/12 mortar, helicopter deck
Military load	570 t cargo or 11 tanks, 240 troops
Electronic equipment	Decca 1226, Triton radars
Complement	35

Standard scale images

Graphics

Project history

Small tank landing ships. PS700 design.

Modernizations

2012, Ibn Ouf: diesels were replaced by 2 MTU (5340hp, 15kts)

2013, Ibn Haritha: diesels were replaced by 2 MTU (5340hp, 15kts); - 3 x 2 - 40/70, 1 x 1 - 81/12 mortar

Naval service

No significant events.
