IBN AL HADRAMI medium landing ships (1977-1979)

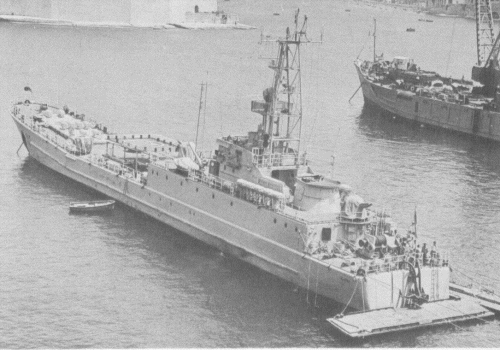

Ibn Al Hadrami 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ابن الحضرمي [Ibn Al Hadrami] | L112, 1983- 112 | Stocznia Północna, Gdańsk, Poland | 15.3.1977 | 12.1977 | non-operational 1999 | ||
| ابن القيس [Ibn Al Qis] | L113 | Stocznia Północna, Gdańsk, Poland | 30.7.1977 | 1978 | fire 15.9.1978 | ||
| ابن أمية [Ibn Omaya] | L116, 1983- 116 | Stocznia Północna, Gdańsk, Poland | 28.3.1978 | 6.1978 | non-operational 1999 | ||
| ابن الفرات [Ibn El Farat] | L118, 1983- 118 | Stocznia Północna, Gdańsk, Poland | 14.9.1978 | 6.1979 | non-operational 1999 |
Technical data
| Displacement standard, t | 920 |
|---|---|
| Displacement normal, t | 1192 |
| Length, m | 81.3 |
| Breadth, m | 9.30 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 40DM diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 16.3 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL, helicopter deck |
| Military load | 6 medium tanks, 180 troops or 240 t of cargo |
| Electronic equipment | Donets, MR-104 Rys' radars |
| Complement | 45 |
Standard scale images
Ibn Al Hadrami 1980
Graphics
Ibn Al Hadrami 1978
Project history
Small tank landing ships of Soviet export project 773KL.
Modernizations
None.
Naval service
Ibn Al Qis was totally destroyed by fire during landing exercises 15.9.1978.
