AL HANI frigates (1986-1987)

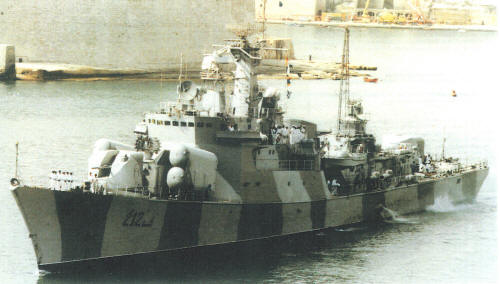

Al Hani 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| الهاني [Al Hani] (ex-СКР-201 [SKR-201]) | 212 | 255 | Gorkiy Yd, Zelenodolsk, USSR | 22.9.1982 | 27.4.1985 | 30.12.1985 // 28.6.1986 | in service (2019) |
| القيردبا [Al Kyrdabian] (ex-СКР-195 [SKR-195]) | 213 | 256 | Gorkiy Yd, Zelenodolsk, USSR | 18.4.1985 | 27.4.1986 | 25.12.1986 // 24.10.1987 | CTL 20.5.2011 |
Technical data
| Displacement standard, t | 1550 |
|---|---|
| Displacement full, t | 1900 |
| Length, m | 96.5 |
| Breadth, m | 12.6 |
| Draught, m | 3.28 hull 5.39 max |
| No of shafts | 3 |
| Machinery | CODAG: 1 M8V6 gas turbine + 2 68B-6 diesels |
| Power, h. p. | 20000 + 16000 = 36000 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3800(14) |
| Armament | 2 x 2 P-20M Termit SSM (4 P-20M), 1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 4 - 400 TT, 1 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
| Electronic equipment | MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
| Complement | 112 |
Standard scale images
Al Hani 1990
Graphics
Al Hani 1999
Project history
Vosper-Thornycroft Mk 7 frigate design, slightly larger than the two Iranian Mk 5 and with a different armament.
Modernizations
None.
Naval service
Al Kyrdabian was badly damaged 20.5.2011 in the port of Tripoli during NATO air attack and 8.8.2011 capsized and sank. Al Hani in March 2011 escaped to Benghazi and joined the rebels against Kadhafi regime. 5.9.2011, when Libyan regime was destroyed, Al Hani returned to Tripoli.
