LIBYA
NON-NAVAL FORCES
300 patrol boats (2010)
300 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 300 | CN Vittoria, Adria, Italy | 2.2010 | in service (2019) | ||||
| 301 | CN Vittoria, Adria, Italy | 2010 | in service (2019) |
Technical data
| Displacement standard, t | 110 |
|---|---|
| Displacement full, t | 140 |
| Length, m | 35.0 |
| Breadth, m | 7.20 |
| Draught, m | |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M93 diesels |
| Power, h. p. | 8480 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(12) |
| Armament | small arms |
| Electronic equipment | 2x nav. radars |
| Complement | 9 |
Graphics

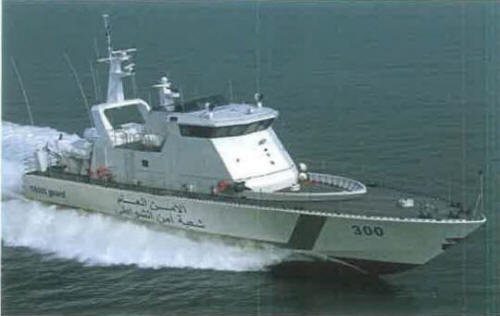

300 2014
Project history
Coast Guard. Vittoria FMPV350 design.
Modernizations
None.
Naval service
No significant events.
