GARIAN large patrol craft (1969-1970)
Khawlan
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| قرين، [Garian], late 1980s- زليتن [Zleitan] | PC1, 1983- 611 | Brooke Marine, Lowestoft, UK | 21.4.1969 | 8.1969 | Customs / Coast Guard 1983-1984, non-operational 1995 | ||
| خولن [Khawlan] | PC2, 1983- 612 | Brooke Marine, Lowestoft, UK | 29.5.1969 | 8.1969 | Customs / Coast Guard 1983-1984, non-operational 1995 | ||
| مروا [Merawa] | PC3, 1983- 613 | Brooke Marine, Lowestoft, UK | 30.9.1969 | early 1970 | Customs / Coast Guard 1983-1984, non-operational 1995 | ||
| سبرثا [Sabratha] | PC4, 1983- 614 | Brooke Marine, Lowestoft, UK | 25.10.1969 | early 1970 | Customs / Coast Guard 1983-1984, non-operational 1995 |
Technical data
| Displacement standard, t | 120 |
|---|---|
| Displacement full, t | 159 |
| Length, m | 32.3 |
| Breadth, m | 6.50 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Paxman Ventura diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(12) |
| Armament | 1 x 1 - 40/60 Mk 9, 1 x 1 - 20/70 Mk 7 |
| Electronic equipment | radar |
| Complement | 15 - 22 |
Graphics

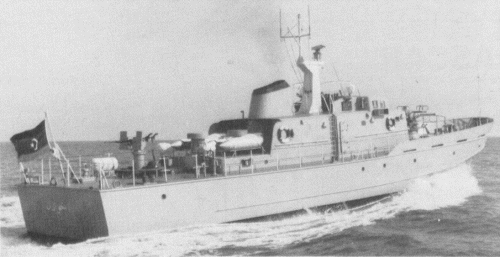

Khawlan
Project history
Ordered in December 1967.
Modernizations
None.
Naval service
No significant events.
