Mersit

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
المرقب [Al Mergheb]	628, 10.2018- 838		Adria Mar, Zagreb, Croatia			5.2006	in service (2019)
سيدي بلال [Sidi Bilal]	632		Adria Mar, Zagreb, Croatia			5.2006	in service (2019)
السدادة [Al Sadada]	634		Adria Mar, Zagreb, Croatia			2007	in service (2019)
جليانة [Jelyana]	636		Adria Mar, Zagreb, Croatia			2007	in service (2019)

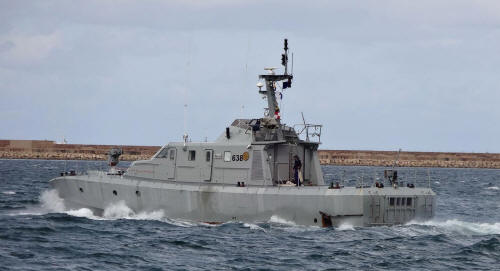

مرسيط [Mersit]	638		Adria Mar, Zagreb, Croatia			2008	in service (2019)
تاقرفت [Tagrift]	642		Adria Mar, Zagreb, Croatia			2008	sunk 5.2011

Technical data

Displacement standard, t	130
Displacement full, t	166
Length, m	31.2
Breadth, m	6.40
Draught, m	1.55
No of shafts	2
Machinery	2 Deutz TBD630 diesels
Power, h. p.	4360
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	1000(12)
Armament	628: 1 x 1 - 14.5/93, 1 x 1 - 12.7/79 632, 634, 636, 638, 642: 1 x 1 - 20/70 M71, 2 x 1 - 12.7/79
Electronic equipment	Raytheon radar
Complement	14

Graphics

Project history

Ordered in 2004 unedr Adria Mar PV30-LS (OOB-31) project. Stealth forms 5m 60kts fast RIB can be handled via stern ramp.

Modernizations

None.

Naval service

Jelyana was badly damaged by British aircraft in May 2011, fired and capsized by later repaired and recommissioned in 2013. Tagrift was sunk by NATO air raid at Dera'a.
