AL KATUM fast attack craft (missile) (1976-1980)

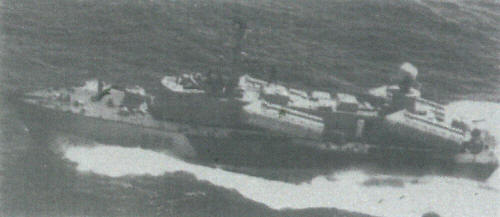

Al Mathur 1993

Ships


Name No Yard No Builder Laid down Launched Comp Fate
الكتوم [Al Katum] P205, 1983- 511   Vympel, Rybinsk, USSR     10.1976 cannibalized 1998
الوقح [Al Ovakh], later-  الزوار [Al Zuara] P956, 1983- 513   Vympel, Rybinsk, USSR     1977 abandoned 2012-13
الروح [Al Ruha] P207, 1983- 515   Vympel, Rybinsk, USSR     1977 abandoned 2012-13
البيضة [Al Baida] P208, 1983- 517   Vympel, Rybinsk, USSR     1977 cannibalized 1998
النابه [Al Nabha] P209, 1983- 519   Vympel, Rybinsk, USSR     1977 cannibalized 1998
السفرة [Al Safra] P952, 1983- 521   Vympel, Rybinsk, USSR     5.1980 cannibalized 1998
الفقه [Al Fikah] P210, 1983- 523   Vympel, Rybinsk, USSR     7.1978 stricken 2002
المأثور [Al Mathur] P206, 1983- 525   Vympel, Rybinsk, USSR     1979 abandoned 2012-13
المشى [Al Mosha] P953, 1983- 527   Vympel, Rybinsk, USSR     1979 cannibalized 1998
السكب [Al Sakab] P954, 1983- 529   Vympel, Rybinsk, USSR     7.1980 cannibalized 1998
البيطار [Al Bitar] P955, 1983- 531   Vympel, Rybinsk, USSR     1979 stricken 2006
السداد [Al Sadad] P956, 1983- 533   Vympel, Rybinsk, USSR     4.1980 cannibalized 1998


Technical data


Displacement standard, t

192
Displacement full, t

243
Length, m

38.6
Breadth, m

7.60
Draught, m

2.00
No of shafts

3
Machinery

3 M-504B diesels
Power, h. p.

15000
Max speed, kts

42
Fuel, t

diesel oil
Endurance, nm(kts)

1620(15)
Armament

4 x 1 P-15U SSM (4 P-15U), 2 x 2 - 30/71 AK-230
Electronic equipment

MR-101 Rangout, MR-104 Rys' radars
Complement

29


Standard scale images


<i>Al Katum </i>1980
Al Katum 1980


Graphics


<i>Al Mathur </i>1993
Al Mathur 1993


Project history

Soviet export project 205ER craft.

Modernizations

None.

Naval service

No significant events.
