TABARJA patrol boat (1994/2008)
Tabarja 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| تبرج [Tabarja] (ex-Bergen) | 42 | Lürssen, Vegesack, Germany | 9/1993 | 14.4.1994 | 19.5.1994 // 17.6.2008 | in service (2019) |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 126 |
| Length, m | 28.7 |
| Breadth, m | 6.50 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 Deutz TBD234V16 diesels |
| Power, h. p. | 2050 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 15 |
Graphics

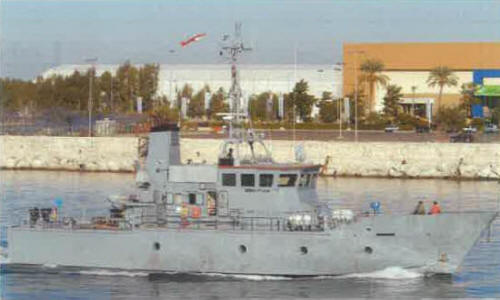

Tabarja 2008
Project history
Former German gunnery range safety and rescue craft.
Modernizations
None.
Naval service
No significant events.
