NAVYPEDIA

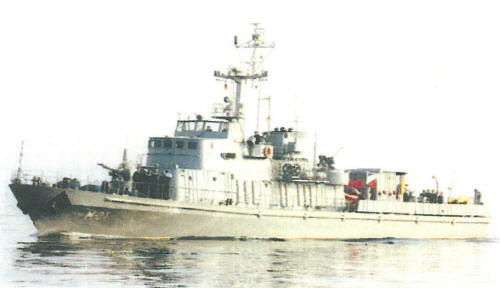

Viesturs 2001

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Viesturs (ex-Kamenz)	M01	246	Peenewerft, Wolgast, East Germany			24.7.1971 // 30.8.1993	retired 2007
Imanta (ex-Röbel)	M02	257	Peenewerft, Wolgast, East Germany			1.12.1971 // 30.8.1993	retired 2006

Technical data

Displacement standard, t	437
Displacement full, t	471
Length, m	56.8
Breadth, m	7.72
Draught, m	2.48
No of shafts	2
Machinery	2 40DM diesels
Power, h. p.	5000
Max speed, kts	18.4
Fuel, t	diesel oil
Endurance, nm(kts)	2000(15)
Armament	M01: 1 x 2 - 23/82 Wrobel, SDGR/L, MSG-1S/SP, MSG-2/SP USV, HFG-13, HFG-24, FRG-1 magnetic and AT-2 acoustic minesweeping gear M02: 3 x 2 - 23/82 Wrobel, SDGR/L, MSG-1S/SP, MSG-2/SP USV, HFG-13, HFG-24, FRG-1 magnetic and AT-2 acoustic minesweeping gear
Electronic equipment	TSR-333 radar, M-69 sonar
Complement	30

Standard scale images

Graphics

Project history

Former East German minesweepers of project 89.2, lengthened 89.1 to accommodate additional armament and modern minesweeping gear. Transferred without guns and armed by Polish mounts.

Modernizations

2000, Viesturs: + 2 x 1 - 20/90 Mk 20 Rh202

2000, Imanta: - 2 x 2 - 23/82; + 2 x 1 - 20/90 Mk 20 Rh202

Naval service

: No significant events.
