NAMEJS minehunter (1960/1999)

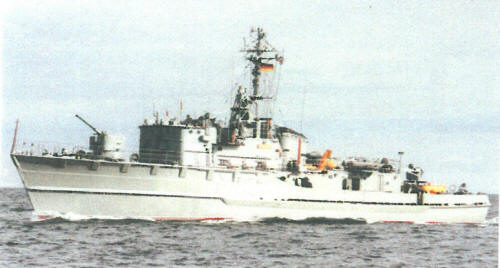

Namejs 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Namejs (ex-Völkingen) | M03 | Burmester Werft, Bremen, West Germany | 20.10.1959 | 21.5.1960 // 24.3.1999 | retired 2008 |
Technical data
| Displacement standard, t | 387 |
|---|---|
| Displacement full, t | 402 |
| Length, m | 43.5 wl 47.1 oa |
| Breadth, m | 8.00 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 Maybach MD871 diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil 42 |
| Endurance, nm(kts) | 1950(12) |
| Armament | 1 x 1 - 40/70 Bofors 315, 4 DCR, 2x PAP-104 USV, diving equipment |
| Electronic equipment | SPS-64 radar, type 193M sonar |
| Complement | 40 |
Standard scale images
Namejs 2000
Graphics
Namejs 2002
Project history
Former Bundesmarine's minehunters of Lindau class.
Modernizations
None.
Naval service
: No significant events.
