IMANTA minehunters (1983-1984/2006-2011)

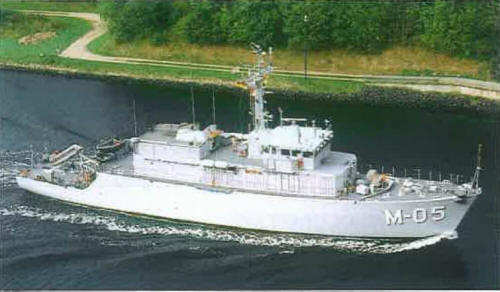

Viesturs 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Imanta (ex-Harlingen) | M04 | M854 | Van der Giessen de Noord, Alblasserdam, Netherlands | 30.11.1981 | 9.7.1983 | 12.4.1984 // 18.12.2006 | in service (2020) |
| Viesturs (ex-Scheveningen) | M05 | M855 | Van der Giessen de Noord, Alblasserdam, Netherlands | 24.5.1982 | 2.12.1983 | 18.7.1984 // 5.9.2007 | in service (2020) |
| Tālivaldis (ex-Dordrecht) | M06 | M852 | Van der Giessen de Noord, Alblasserdam, Netherlands | 5.1.1981 | 26.2.1983 | 16.11.1983 // 4.4.2008 | in service (2020) |
| Visvaldis (ex-Defzijl) | M07 | M851 | Van der Giessen de Noord, Alblasserdam, Netherlands | 29.5.1980 | 29.10.1982 | 17.8.1983 // 24.10.2008 | in service (2020) |
| Rūsiņš (ex-Alkmaar) | M08 | M850 | Van der Giessen de Noord, Alblasserdam, Netherlands | 30.1.1979 | 18.5.1982 | 28.5.1983 // 8.2011 | in service (2020) |
Technical data
| Displacement standard, t | 510 |
|---|---|
| Displacement normal, t | 595 |
| Length, m | 47.1 pp 51.5 oa |
| Breadth, m | 8.90 |
| Draught, m | 2.47 hull 3.80 max |
| No of shafts | 1 + 2 Schottel active rudders |
| Machinery | 1 Werkspoor-Wärtsilä A-RUB215 V12 diesel |
| Power, h. p. | 1900 + 240 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 20/90 20F-2, 2x PAP-104 Mk 5 USV, OD-3 mechanical minesweeping gear |
| Electronic equipment | MM950 radar, DUBM-21B sonar |
| Complement | 34 - 42 |
Standard scale images
Imanta 2010
Graphics
Viesturs 2014
Project history
Former Dutch Alkmaar-class minehunters.
Modernizations
None.
Naval service
: No significant events.
