VIRSAITIS patrol ship (1917/1919)

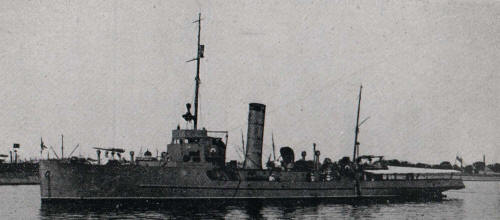

Virsaitis 1926

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Virsaitis (ex-Sarkana Latvija, ex-M68)     Neptun, Rostock, Germany 1916 25.7.1917 10.1917 // 7.1919 to USSR 13.8.1940 (Вирсайтис [Virsaytis])


Technical data


Displacement standard, t

500

Displacement full, t

539

Length, m

56.0 wl 59.3 oa

Breadth, m

7.40

Draught, m

2.15

No of shafts

2

Machinery

2 VTE, 2 Marine boilers

Power, h. p.

1850

Max speed, kts

16

Fuel, t

coal 120

Endurance, nm(kts)2000(6)
Armament

2 x 1 - 88/42 Tbts L/45 C/14, 30 mines, mechanical minesweeping gear

Complement

51



Standard scale images


<i>Virsaitis</i> 1940
Virsaitis 1940


Graphics


<i>Virsaitis </i>1926
Virsaitis 1926


Project history

Former German minesweeper, M68 was mined off Latvian coast, ran ashore and later abandoned being repaired in dry dock in Riga. Repair was completed by Latvian and minesweeper was commissioned by them in January 1919 (Latvia took real independence in July, when Germans abandoned).

Modernizations

1939: - 2 x 1 - 88/42; + 2 x 1 - 84/52 Škoda M.27, 2 x 1 - 47/40 Škoda, mine stowage raised to 40

Naval service

Virsaitis was incorporated to Red Navy in August 1940.
