VALPAS patrol ship (1971/2002)

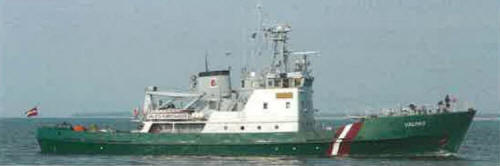

Valpas 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Valpas (ex-Valpas) | Laivateollisuus, Turku, Finland | 22.12.1970 | 21.7.1971 // 25.9.2002 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 540 |
| Length, m | 48.3 |
| Breadth, m | 8.66 |
| Draught, m | 4.30 |
| No of shafts | 1 |
| Machinery | 1 Werkspoor-Wärtsilä TMABS-398 diesel |
| Power, h. p. | 2000 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | 2x radars, SS105 sonar |
| Complement | 22 |
Graphics
Valpas 2013
Project history
Former Finnish Coast Guard patrol ship. Border Guard.
Modernizations
None.
Naval service
: No significant events.
