SKRUNDA patrol boats (2011-2014)





Skrunda 2014

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Skrunda P05   Abeking & Rasmussen, Lemwerder, Germany 2010 20.1.2011 18.4.2011 in service (2020)
Cēsis P06   Abeking & Rasmussen, Lemwerder, Germany 5.2010 23.11.2011 2.4.2012 in service (2020)
Viesīte P07   Riga SY 10.11.2010 22.8.2012 22.8.2012 in service (2020)
Jelgava P08   Abeking & Rasmussen, Lemwerder, Germany 2011 16.4.2013 24.7.2013 in service (2020)
Rēzekne P09   Riga SY 2011 14.10.2013 20.3.2014 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Skrunda P05   Abeking & Rasmussen, Lemwerder, Germany 2010 20.1.2011 18.4.2011 in service (2020) Cēsis P06   Abeking & Rasmussen, Lemwerder, Germany 5.2010 23.11.2011 2.4.2012 in service (2020) Viesīte P07   Riga SY 10.11.2010 22.8.2012 22.8.2012 in service (2020) Jelgava P08   Abeking & Rasmussen, Lemwerder, Germany 2011 16.4.2013 24.7.2013 in service (2020) Rēzekne P09   Riga SY 2011 14.10.2013 20.3.2014 in service (2020)

Technical data


Displacement standard, t

125
Displacement full, t

139
Length, m

25.7
Breadth, m

13.0
Draught, m

2.70
No of shafts

2
Machinery

2 MAN D2842
Power, h. p.

2200
Max speed, kts

20
Fuel, t

diesel oil
Endurance, nm(kts)

1500(8)
Armament

1 x 1 - 27/63 MLG27 (fitted for), 2 x 1 - 12.7/90
Electronic equipment

Raytheon radar
Complement

8


Graphics

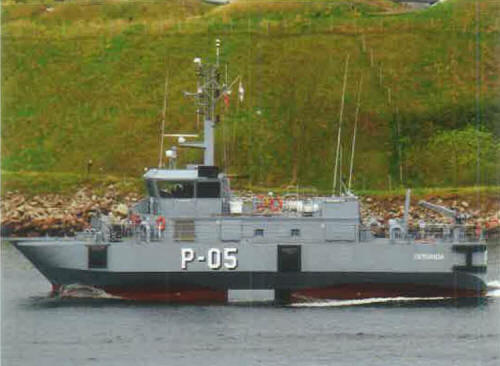

<i>Skrunda </i>2014
Skrunda 2014


Project history

SWATH-type catamaran hull. Vessels are derived from the design of SWATH pilot boats which have been in operation since 1999. The roles are to be patrol and surveillance of territorial waters and EEZ and feature a modular mission bay in the forward section. Options include 27mm gun and a SAR module.

Modernizations

None.

Naval service

No significant events.
