AL SHAHEED patrol boats (1997-2001)
Al Shaheed 1997
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| الشهيد [Al Shaheed] | P305 | Océa, St. Nazaire, France | 6.1997 | 7/1997 | in service (2020) | ||
| بيان [Bayan] | P306 | Océa, St. Nazaire, France | 6.4.1999 | 25.5.1999 | in service (2020) | ||
| دسمان [Dasman] | P307 | Océa, St. Nazaire, France | 10.5.2001 | 8.6.2001 | in service (2020) |
Technical data
| Displacement standard, t | 90 |
|---|---|
| Displacement full, t | 104 |
| Length, m | 27.6 pp 33.3 oa |
| Breadth, m | 7.00 |
| Draught, m | 1.15 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TE94 diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 360(25) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | 20V90, C252/8 radars |
| Complement | 11 |
Graphics

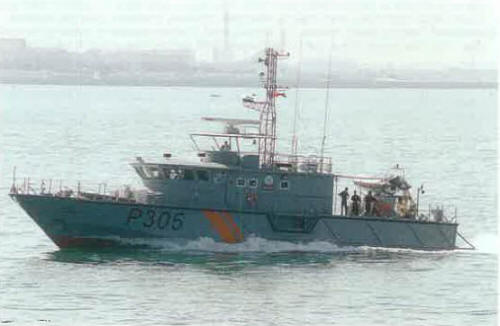

Al Shaheed 1997
Project history
FPB100 design.
Modernizations
None.
Naval service
No significant events.
