NAVYPEDIA


Al Ahmadi 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
أم المرادم [Um Almaradim]	P3711		CMN, Cherbourg, France	11.1994	27.2.1997	1.8.1998	in service (2020)
أوحى [Ouha]	P3713		CMN, Cherbourg, France	2.1995	29.5.1997	1.8.1998	in service (2020)
فيلكا [Failaka]	P3715		CMN, Cherbourg, France	5.1995	4.9.1997	19.12.1998	in service (2020)
مسكن [Maskan]	P3717		CMN, Cherbourg, France	8.1995	7.1.1998	19.12.1998	in service (2020)

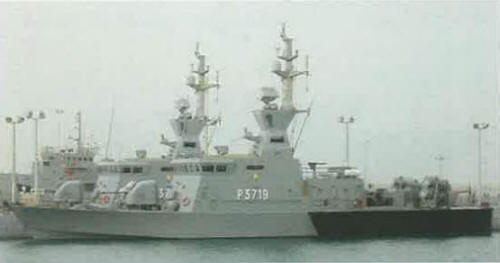

الأحمدي [Al Ahmadi]	P3719		CMN, Cherbourg, France	11.1995	2.4.1998	16.8.2000	in service (2020)
الفحيحيل [Al Fahaheel]	P3721		CMN, Cherbourg, France	2.1996	12.6.1998	16.8.2000	in service (2020)
اليرموك [Al Yarmouk], 2002- الصادي [Al Saadi]	P3723		CMN, Cherbourg, France	5.1996	3.3.1999	16.8.2000	in service (2020)
جروح [Garoh]	P3725		CMN, Cherbourg, France	8.1996	4.6.1999	16.8.2000	in service (2020)

Technical data

Displacement standard, t	225
Displacement full, t	250
Length, m	37.5 wl 42.0 oa
Breadth, m	8.50
Draught, m	1.90
No of shafts	2 waterjets
Machinery	2 MTU 16V538 TB93 diesels
Power, h. p.	8000
Max speed, kts	30
Fuel, t	diesel oil 30
Endurance, nm(kts)	1350(14)
Armament	2 x 2 Sea Skua SSM (4 Sea Skua), 1 x 6 Sadral SAM (6 Mistral) (fitted for but not installed), 1 x 1 - 40/70 Breda-Bofors Fast Forty, 1 x 1 - 20/90 F2, 2 x 1 - 12.7/90
Electronic equipment	MRR-3D, 20V90, Sea Spray Mk 3 radars, Najir Mk 2 e/o system, DR-3000S1 ECM suite, 2x Dagaie Mk 2 decoy RL (fitted for but not installed), NCCS CCS
Complement	29

Standard scale images

Graphics

Project history

CMN P37BRL design, ordered in 1995. Steel hull, aluminium superstructure.

Modernizations

None.

Naval service

No significant events.
