NAVYPEDIA


Intisar 1972

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
أل سلمي [Al Salemi] أل موبركي [Al Mubaraki] أمن [Aman] ميمون [Maymoon] مرزوك [Marzook] مشور [Mashoor] مورشد [Murshed] وثه [Wathah] أل شورتي [Al Shurti] إنتسر [Intisar]	Thornycroft, Southampton, UK: Al Salemi, Al Mubaraki Vosper Thornycroft, Southampton, UK: Aman, Maymoon, Marzook, Mashoor, Murshed, Wathah, Al Shurti, Intisar	9/1966: Al Salemi, Al Shurti 1968: Aman, Maymoon 1969: Marzook, Mashoor 1970: Murshed, Wathah 1972: Al Shurti, Intisar	Al Salemi (2.8.1990), Al Shurti (2.8.1990), Aman (2.8.1990), Maymoon (2.8.1990), Marzook (2.8.1990), Mashoor (2.8.1990), Murshed (2.8.1990), Wathah (2.8.1990), Al Shurti (2.8.1990), Intisar (2.8.1990)	none	none

Technical data

Displacement standard, t	40
Displacement full, t
Length, m	25.5
Breadth, m	4.70
Draught, m	1.40
No of shafts	2
Machinery	2 Rolls-Royce V8 marine diesels
Power, h. p.	1340
Max speed, kts	20
Fuel, t	diesel oil
Endurance, nm(kts)	700(15)
Armament	1 x 1 - 7.6/90
Electronic equipment	Decca 202 radar
Complement	12

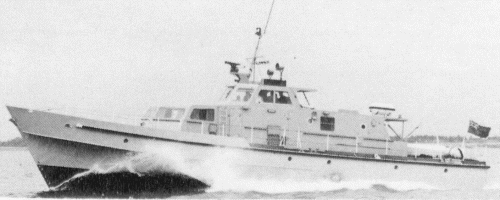

Graphics

Project history

Thornycroft 78ft type coastal patrol boats. Welded steel hulls, aluminium alloy superstructures. May be armed with 1 40mm gun.

Modernizations

None.

Naval service

All were captured by Iraqi forces in August 1990.
