WONSAN minelayer (1997)

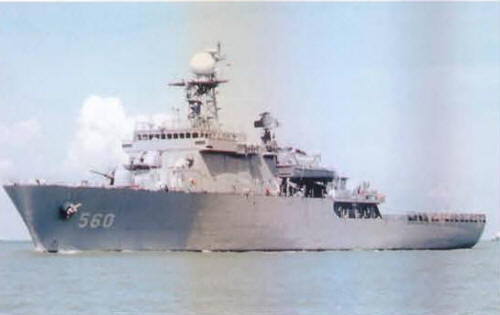

Wonsan 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 원산 [Wonsan] | 560 | Hyundai, Ulsan | 12.1994 | 9.1996 | 9.1997 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 3300 |
| Length, m | 103.8 |
| Breadth, m | 15.0 |
| Draught, m | 3.40 |
| No of shafts | 2 |
| Machinery | 4 SEMT-Pielstick 12PA6 diesels |
| Power, h. p. | 19200 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(15) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 Breda-Bofors Vespa, 2 x 3 - 324 Mk 32 TT, 300 mines, helicopter deck |
| Military load | 1 LCVP |
| Electronic equipment | DA-05, S 1810, SPS-10, 2x ST 1802, SPS-64(v) radars, PHS-32 sonar, ULQ-11K ECM suite, 2x Dagaie decoy RL |
| Complement | 160 |
Graphics
Wonsan 2004
Project history
In addition to minelaying, is able to act as a minehunter and as a training ship and ASW escort. Has a helicopter landing platform aft for aircraft up to CH-53E size, an extensive EW suite, and optronic backup directors for guns. Carries an LCVP landing craft to port.
Modernizations
None.
Naval service
No significant events.
