NAMPO minelayer (2017)
Nampo 2017
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 남포 [Nampo] | 570 | Hyundai, Ulsan | 2013 | 27.5.2015 | 16.6.2017 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 4240 |
| Length, m | 114.3 |
| Breadth, m | 17.2 |
| Draught, m | 4.60 |
| No of shafts | 2 |
| Machinery | 4 MTU 16V1163 diesels |
| Power, h. p. | 28300 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(13) |
| Armament | 4 x 4 ESSM SAM (VLs, 16 RIM-162A), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 3 - 324 Mk 32 TT, 300 mines, 1 helicopter (Lynx) |
| Electronic equipment | SPS-550K, CEROS, surface search, navigation radars, sonar, 2x MASS decoy RL, 2x SLQ-261K torpedo decoy RL |
| Complement |
Graphics

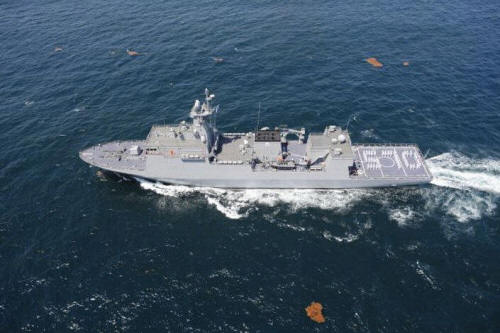

Nampo 2017
Project history
Modified Wonsan design, MLS-II.
Modernizations
None.
Naval service
No significant events.
