LSF631 air-cushion landing craft (2007-)

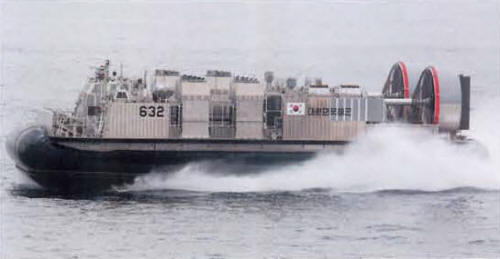

632 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 솔개 631 [Solgae 631] | LSF631 | Hanjin, Pusan | 10.2007 | in service (2019) | |||
| 솔개 632 [Solgae 632] | LSF632 | Hanjin, Pusan | 10.2007 | in service (2019) | |||
| 솔개 633 [Solgae 633] | LSF633 | Hanjin, Pusan | 2020 | awarded (2019) | |||
| 솔개 635 [Solgae 635] | LSF635 | Hanjin, Pusan | 2020 | awarded (2019) |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement normal, t | 155 |
| Length, m | 26.8 |
| Breadth, m | 14.3 |
| Draught, m | 0.87 at rest |
| No of shafts | 2 air propellers |
| Machinery | 4 Vericor ETF-40B gas turbines (2 for lift) |
| Power, h. p. | 12180 |
| Max speed, kts | 40 (loaded) |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 300(35) (loaded) |
| Armament | none |
| Military load | 1 main battle tank or 55 t cargo, 25 troops |
| Electronic equipment | radar |
| Complement | 5 |
Standard scale images
LSF631 2010
Graphics
632 2008
Project history
Design was based closely to USN LCAC. Acquired for use from Dokdo.
Modernizations
None.
Naval service
No significant events.
