TAEPUNGYANG 2 patrol ship (1998)

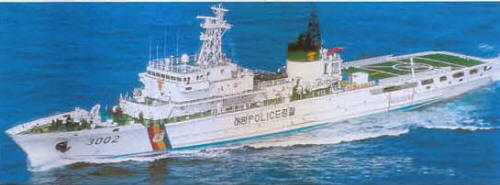

Taepungyang 2 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 태평양 2 [Taepungyang 2] | 3002 | Hyundai, Ulsan | 31.10.1998 | in service (2019) |
Technical data
| Displacement standard, t | 3000 |
|---|---|
| Displacement full, t | 3860 |
| Length, m | 110.5 |
| Breadth, m | 15.4 |
| Draught, m | 4.90 |
| No of shafts | 2 |
| Machinery | 4 Sangyong-Burmeister & Wain 16V28/32 diesels |
| Power, h. p. | 11800 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil 650 |
| Endurance, nm(kts) | 8500(15) |
| Armament | 1 x 3 - 20/76 Sea Vulcan, 6 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x radars |
| Complement | 120 |
Graphics
Taepungyang 2 2006
Project history
Has firefighting, towing, oil-spill containment, and salvage equipment. Hull sides are heavily reinforced with rubbing strakes.
Modernizations
None.
Naval service
No significant events.
