TAEPUNGYANG 1 patrol ship (1993)

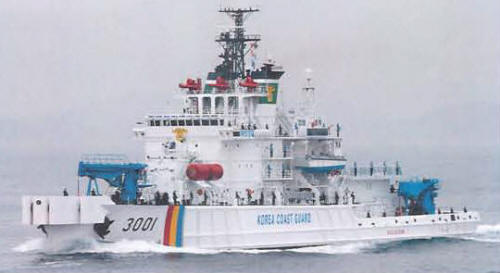

Taepungyang 1 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 태평양 1 [Taepungyang 1] | 3001 | Hyundai, Ulsan | 2/1991 | 10.1991 | 18.2.1993 | in service (2019) |
Technical data
| Displacement standard, t | 3200 |
|---|---|
| Displacement full, t | 4450 |
| Length, m | 104.7 |
| Breadth, m | 15.0 |
| Draught, m | 5.20 |
| No of shafts | 2 |
| Machinery | 4 Sangyong-Burmeister & Wain 16V28/32 diesels |
| Power, h. p. | 11800 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil 650 |
| Endurance, nm(kts) | 8500(15) |
| Armament | 1 x 3 - 20/76 Sea Vulcan, 6 x 1 - 7.6/90, 1 helicopter (AS-565MB) |
| Electronic equipment | 2x radars |
| Complement | 120 |
Standard scale images

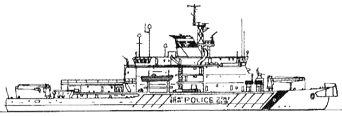

Taepungyang 1 2000
Graphics
Taepungyang 1 2008
Project history
Has firefighting, towing, oil-spill containment, and salvage equipment. Bow is equipped with sheaves for cable laying and repair. Can lay and recover a four-point moor for salvage purposes Hull sides are heavily reinforced with rubbing strakes.
Modernizations
None.
Naval service
No significant events.
