FIGHTING SHIPS OF THE WORLD
KOREA (SOUTH)
NON-NAVAL FORCES
SAMYEONHO patrol ship (2002)
Samyeonho 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 삼봉호 [Samyeonho] | 5001 | Hyundai, Ulsan | 23.4.2002 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 6350 |
| Length, m | 145.5 |
| Breadth, m | 16.5 |
| Draught, m | 5.50 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 23580 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7300(15) |
| Armament | 2 x 3 - 20/76 Sea Vulcan, 1 helicopter (Ka-28) |
| Electronic equipment | 2x radars |
| Complement | 97 |
Graphics

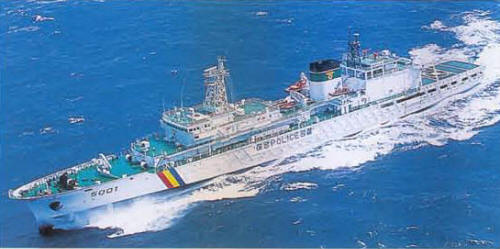

Samyeonho 2006
Project history
Enlarged version of the Taepyeongyang 2-class tenders.
Modernizations
None.
Naval service
No significant events.
