MAZINGA patrol ships (1982-1983)

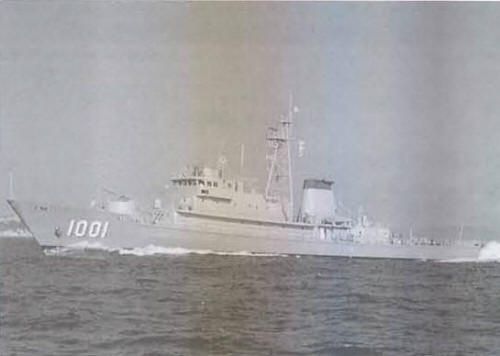

Mazinga 1987
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 한강 1 마징아 [Hangang 1 Mazinga] | 1001 | Hanjin, Pusan | 3.8.1981 | 24.12.1981 | 16.2.1982 | stricken 12.2011 | |
| 한강 2 [Hangang 2] | 1002 | Hyundai, Ulsan | 1981 | 31.8.1982 | 14.10.1982 | stricken 7.2011 | |
| 한강 3 [Hangang 3] | 1003 | Hanjin, Pusan | 31.8.1983 | stricken 2013 |
Technical data
| Displacement standard, t | 1200 |
|---|---|
| Displacement full, t | 1450 |
| Length, m | 81.5 |
| Breadth, m | 9.80 |
| Draught, m | 3.15 |
| No of shafts | 2 |
| Machinery | 2 Niigata-Pielstick 12PA6 V280 diesels |
| Power, h. p. | 9600 |
| Max speed, kts | 21.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7000(18) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24 |
| Electronic equipment | 2x radars |
| Complement | 69 |
Standard scale images
Mazinga 1990
Graphics
Mazinga 1987
Project history
Mazinga served as maritime police flagship.
Modernizations
None.
Naval service
No significant events.
