JEBI 01 patrol boats (1980s)
Jebi 01 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
제비 01 etc. [Jebi 01 etc] (82 boats) |
Korea SB, Pusan: 82 boats |
1980s: 82 boats |
none |
none |
2010s: ~ 6 boats 2018: 1 boat in service (2019): 75 boats |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 32 |
| Length, m | 20.0 |
| Breadth, m | 4.70 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 General Motors 12V71 TI diesels |
| Power, h. p. | 1060 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(20) |
| Armament | 1 x 1 - 12.7/90, 1 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

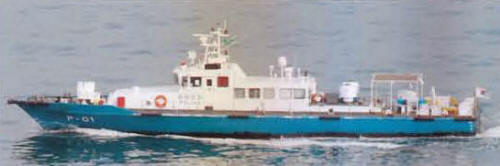

Jebi 01 2008
Project history
Small patrol boats. GRP hull.
Modernizations
None.
Naval service
No significant events.
