Jaemin 3 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

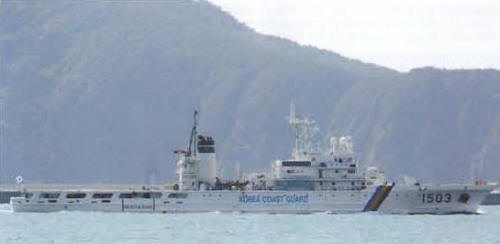

제민 3  [Jaemin 3]	1503		Hanjin, Pusan		10.6.1999	10.4.2001	in service (2019)
제민 5 [Jaemin 5]	1505		Hyundai, Ulsan		30.12.2000	2001	in service (2019)
제민 6 [Jaemin 6]	1506		Hyundai, Ulsan		9.3.2004	23.11.2004	in service (2019)

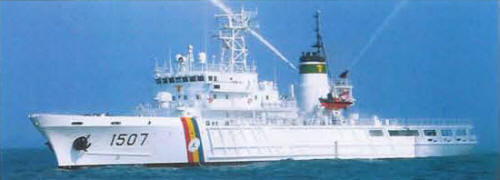

제민 7 [Jaemin 7]	1507		Hyundai, Ulsan		2004	2005	in service (2019)
제민 8 [Jaemin 8]	1508		Hyundai, Ulsan		23.5.2005	20.10.2005	in service (2019)
제민 9 [Jaemin 9]	1509		Hanjin, Pusan		15.6.2006	20.3.2007	in service (2019)
제민 10 [Jaemin 10]	1510		Hanjin, Pusan	4.7.2006	19.12.2006	2007	in service (2019)
제민 11 [Jaemin 11]	1511		Hyundai, Ulsan	2.7.2007	16.4.2008	30.10.2008	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	2700
Length, m	97.7
Breadth, m	14.0
Draught, m	4.30
No of shafts	2
Machinery	2 MTU 16V1163 TB83 diesels
Power, h. p.	12875
Max speed, kts	21
Fuel, t	diesel oil
Endurance, nm(kts)	4500(15)
Armament	1505-1509: 1 x 3 - 20/76 Sea Vulcan, 2 x 1 - 7.6/90, helicopter deck 1510, 1511: 1 x 1 - 40/60 Mk 3, 2 x 1 - 7.6/90, helicopter deck
Electronic equipment	2x radars
Complement

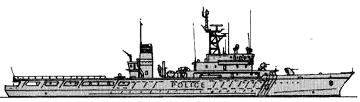

Standard scale images

Graphics

Project history

Improved variant of the Jaemin 2 class. Are equipped for firefighting, ocean patrol, rescue, and salvage duties.

Modernizations

None.

Naval service

No significant events.
