ICHEONGHO patrol ships (2016)

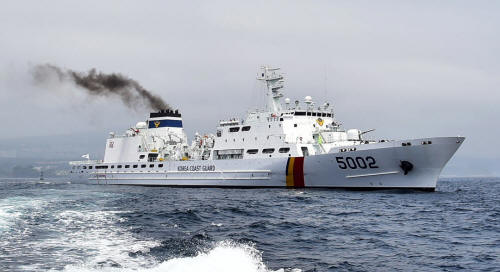

Icheongho 2016

Ships


Name No Builder Laid down Launched Comp Fate
이청호 [Icheongho] 5002 Hyundai, Ulsan   3.12.2015 30.5.2016 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

6500

Length, m

150.5

Breadth, m

16.5

Draught, m

5.50

No of shafts

2

Machinery

4 MTU 20V1163 M94 diesels

Power, h. p.

39600

Max speed, kts

26

Fuel, t

diesel oil

Endurance, nm(kts)9000
Armament

1 x 1 - 76/62 OTO-Melara Compact, 1 x 3 - 20/76 Sea Vulcan, 1 helicopter (Ka-28)

Electronic equipment

2x radars

Complement

104 + 36 passengers



Graphics


<i>Icheongho </i>2016
Icheongho 2016


Project history

Large patrol ship. Auxiliary propulsion plant consists of two 750kW electric motors.

Modernizations

None.

Naval service

No significant events.
