HANNURI 27 patrol boats (1998-2003)





Hannuri 28 2008

Ships


Name No Builder Laid down Launched Comp Fate
해누리 27 [Hannuri 27] 127 Sam Kwang SB, Incheon   8.1997 1998 in service (2019)
해누리 28 [Hannuri 28] 128 Sam Kwang SB, Incheon     1998-2001 in service (2019)
해누리 29 [Hannuri 29] 129 Sam Kwang SB, Incheon     1998-2001 in service (2019)
해누리 30 [Hannuri 30] 130 Sam Kwang SB, Incheon   9.2001 2001 in service (2019)
해누리 31 [Hannuri 31] 131 Sam Kwang SB, Incheon   9.2001 2001 in service (2019)
해누리 32 [Hannuri 32] 132 Sam Kwang SB, Incheon     2003 in service (2019)
해누리 33 [Hannuri 33] 133 Sam Kwang SB, Incheon     2003 in service (2019)


Technical data


Displacement standard, t100
Displacement full, t

120
Length, m

33.0 pp 35.0 oa
Breadth, m

6.00
Draught, m

1.47
No of shafts

2
Machinery

2 MTU diesels
Power, h. p.7930
Max speed, kts

25
Fuel, t

diesel oil
Endurance, nm(kts)700
Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Electronic equipment

Furuno radar
Complement

15


Graphics

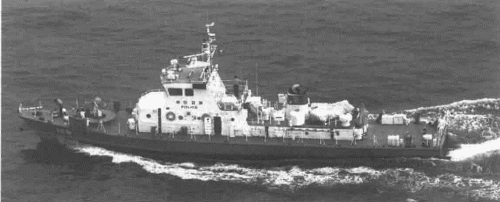

<i>Hannuri 28 </i>2008
Hannuri 28 2008


Project history

100t class.

Modernizations

None.

Naval service

No significant events.
