HANGANG 5 patrol ship (1985)

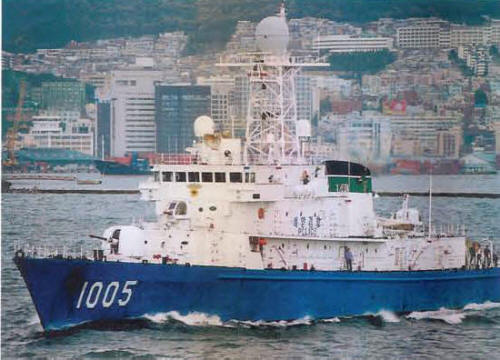

Hangang 5 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 한강 5 [Hangang 5] | 1005 | Korea SB, Pusan | 1984 | 12/1985 | stricken 2015 |
Technical data
| Displacement standard, t | 980 |
|---|---|
| Displacement full, t | 1150 |
| Length, m | 87.8 |
| Breadth, m | 10.0 |
| Draught, m | 2.36 |
| No of shafts | 2 |
| Machinery | CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V956 TB82 diesels |
| Power, h. p. | 27800 / 12520 |
| Max speed, kts | 31 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 4000(15) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/60 Mk 3, 2 x 3 - 20/76 Sea Vulcan |
| Electronic equipment | SPS-64(v), WM-28 radars, Radamec 2400 e/o system |
| Complement | 72 |
Graphics
Hangang 5 2006
Project history
A lower-powered and more lightly armed version of the Pohang-class frigates built for the navy.
Modernizations
None.
Naval service
No significant events.
