Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
해울 1 [Haeul 1]	251		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 2 [Haeul 2]	252		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 3 [Haeul 3]	253		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 5 [Haeul 5]	255		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 6 [Haeul 6]	256		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 7 [Haeul 7]	257		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 8 [Haeul 8]	258		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 9 [Haeul 9]	259		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 10 [Haeul 10]	260		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 11 [Haeul 11]	261		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 12 [Haeul 12]	262		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 13 [Haeul 13]	263		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 15 [Haeul 15]	265		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 16 [Haeul 16]	266		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 17 [Haeul 17]	267		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2011, to Vietnam (CSB-2015)
해울 18 [Haeul 18]	268		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 19 [Haeul 19]	269		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 20 [Haeul 20]	270		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 21 [Haeul 21]	271		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2011, to Vietnam (CSB-2016)
해울 22 [Haeul 22]	272		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 23 [Haeul 23]	273		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 25 [Haeul 25]	275		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s
해울 26 [Haeul 26]	276		Hyundai, Ulsan or Hanjin, Masan			1979-82	stricken 2010s

Technical data

Displacement standard, t	250
Displacement full, t	280
Length, m	47.8
Breadth, m	7.10
Draught, m	2.12 hull 2.50 propellers
No of shafts	2
Machinery	2 MTU 16V538 diesels
Power, h. p.	7320
Max speed, kts	28
Fuel, t	diesel oil
Endurance, nm(kts)	3300(15)
Armament	2 x 2 - 20/70 Mk 24 or 1 x 2 - 20/70 Mk 24 or 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Electronic equipment	radar
Complement	29

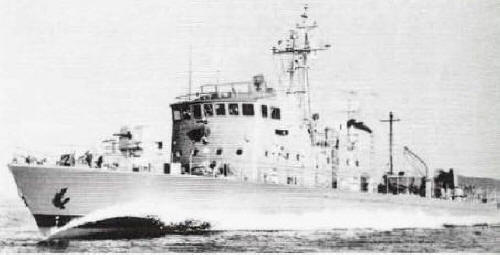

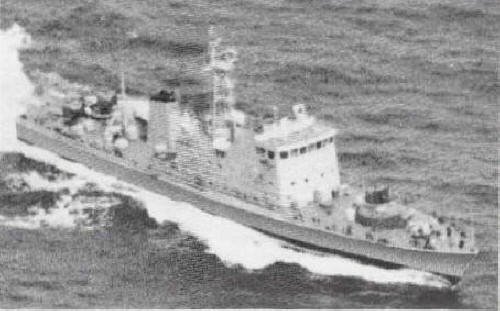

Graphics

Project history

Large patrol craft. 250t class.

Modernizations

None.

Naval service

No significant events.
